Introduction:
Linear guide rails play a critical role in modern mechanical engineering, widely used in CNC machines, automation systems, and high-precision assembly lines. The performance and longevity of guide rails are directly influenced by the precision of their installation. This article delves into how accurate installation and adjustments can maximize the efficiency and precision of linear guide rails.
1. The Importance of the Mounting Surface:
The precision of linear guide rails starts with the quality of their mounting surface. High accuracy in the straightness and parallelism of the mounting surface is crucial because any minor deviations can amplify during rail operation, leading to performance degradation and increased wear. How to measure and ensure these metrics meet the required standards is a challenge every mechanical engineer must tackle.
2. Balancing Shape Accuracy and Surface Roughness:
When installing guide rails, shape accuracy (such as straightness and parallelism) is more critical than surface roughness. It is often unnecessary to achieve ultra-low roughness through expensive grinding processes. Instead, mechanical methods like scraping can be used to correct the mounting surfaces economically and effectively.
1212

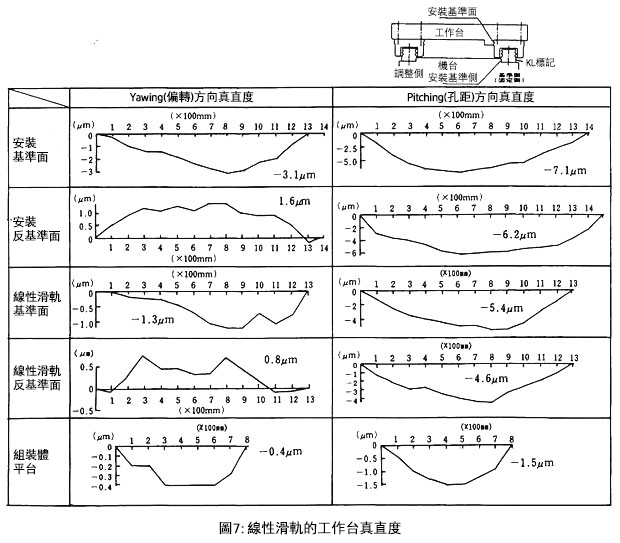

3. Averaging Effects of Installation Errors:
In practice, interactions between the rail and the carriage can average out some of the imperfections in the mounting surfaces. This means that even if the mounting surfaces are slightly imperfect, the overall system precision might still improve—an important point to leverage during design and installation.
4. Deformation Issues Caused by Screw Tightening:
The stress applied by screw tightening can cause deformation in the guide rails. Choosing the appropriate tightening force and using the correct torque settings are key to preventing such issues.
5. Narrow Range Variations Caused by Ball Circulation:
During the circulation of balls within the rail, especially as they enter and exit the load zone, slight inclinations of the track can cause precision variations. These can be minimized by designing tapered (crowned) end profiles that smooth the balls' transitions, thus enhancing the overall system accuracy.
Conclusion:
Maintaining high precision in linear guide rails is not only a technical challenge but also a necessity for enhancing machine efficiency and lifespan. Through thoughtful design and meticulous installation adjustments, significant performance improvements can be achieved. This article aims to provide technical insights that assist in your everyday engineering practices.
Call to Action:
For readers looking to delve deeper or in need of professional assistance, feel free to comment for discussion or contact professional services to explore more applications and challenges in mechanical precision technologies.
